Non-Destructive Testing
Non-Destructive Testing — ASTM E1444 & E1417
Verified before it ships — magnetic particle and liquid penetrant inspection on our floor, to the current revisions.
Inspection in-house
A rebuilt component is only worth what it can be shown to be. We inspect here rather than shipping work out for verification, which keeps the loop between finding a defect and doing something about it short.
Methods
Magnetic Particle Inspection
Surface and near-surface defect detection on ferromagnetic components, performed to ASTM 1444 as revised.
Liquid Penetrant Inspection
Surface-breaking defect detection on non-porous components, performed to ASTM 1417 as revised.
Specifications
- ASTM 1444Magnetic Particle Testingas revised
- ASTM 1417Liquid Penetrant Testingas revised
Representative work
Shafts inspected on our floor. This is a sample of past work, not a limit — send a drawing.
Shaft
5 ½" × 76"

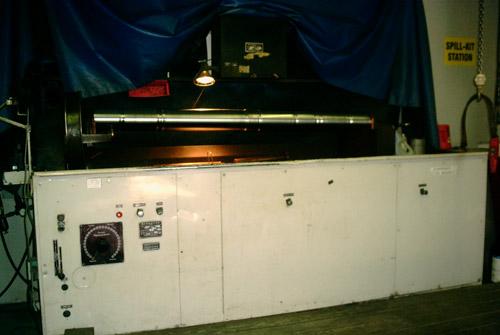

Shaft loaded in Magnetic Particle Inspection Unit.
Shaft
5 ½" × 76"

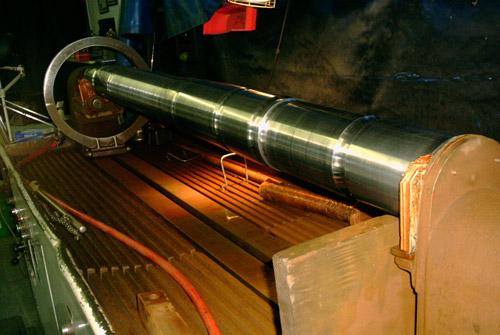

Shaft loaded in Magnetic Particle Inspection Unit.
Shaft
5 ½" × 76"

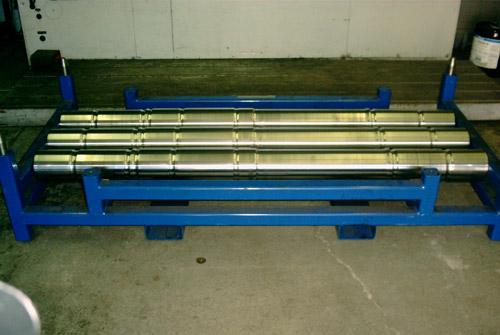

Shafts are polished and ready for Magnetic Particle Inspection Process.
Shaft
5 ½" × 76"

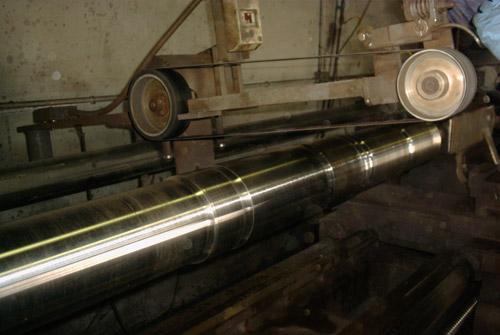

Polishing Shaft for Magnetic Particle Inspection Process.
Prop Shaft
12" × 20"

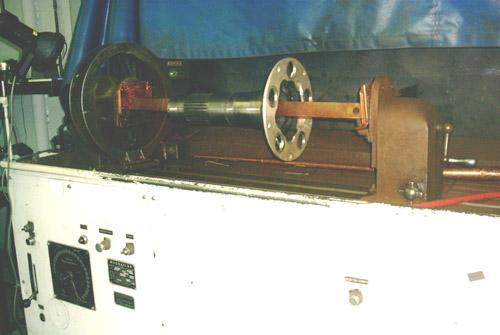

Magnetic Particle Inspection Process.
Prop Shaft
12" × 20"

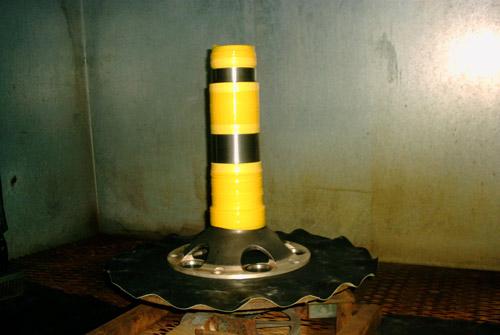

Prop Shaft masked for Shot Peen.
Related
Quality
FAA Repair Station
BBC is an FAA approved Repair Station. Our Quality Manual, Repair Station Manual and training programs are developed in accordance with FAR 145.
Services
Hard Chrome Plating
Hard chrome plating from .0001" for corrosion protection to .050" for rebuild, to AMS 2460 and AMS 2406.
Send us the part
A drawing, a photograph, or just a description of how it failed. We will tell you what we would do with it.
