Precision Grinding
Precision Cylindrical & Internal ID Grinding
Back to print, in the same building we plate and spray in — no handoff between operations.
Why it matters where you grind
Plating and thermal spray both add material. Something has to take it back off, precisely, to bring the component to its finished dimension. That step is grinding, and it decides whether the rebuild actually meets the drawing.
We grind in the same building we plate and spray in. A worn roll can be built up and brought to size without shipping to a second vendor between operations — which removes a handoff, a freight leg, and a place for the schedule to slip.
Grinding services
- Cylindrical grinding — outside diameters on rolls, shafts and rotors
- Internal ID grinding — bores, sleeves and housings
- Finish grinding of hard chrome plated surfaces
- Finish grinding of thermal spray coatings
- Honing
Components we grind
- Coater rolls
- Hydraulic ram shafts
- Bearing diameters
- Pump rotors
- Sleeves and housings
- Conveyor components
Paired with inspection
Ground components can be verified before they ship — magnetic particle inspection to ASTM 1444 and liquid penetrant inspection to ASTM 1417, both as revised, are in-house.
Representative work
Shafts machined, ground and inspected on our floor. This is a sample of past work, not a limit — send a drawing.
Shaft
2 ½" × 100"

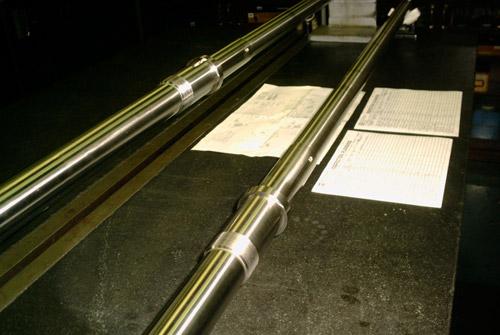

Inspection of CNC manufactured shafts.
Shaft
3" × 40"
CNC manufactured shaft.
Shaft
6" × 100"

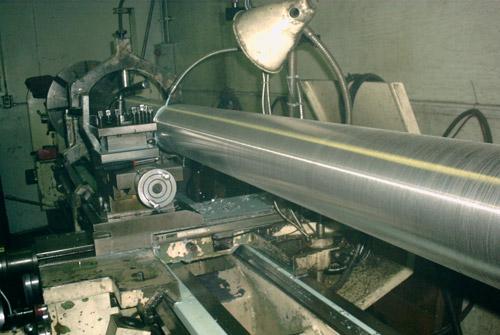

Rough machine of shaft material.

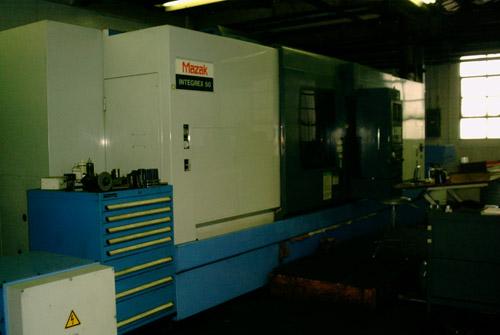

CNC Machining Center
The four-axis multitasking turning and milling center.
Shaft
3" × 72"

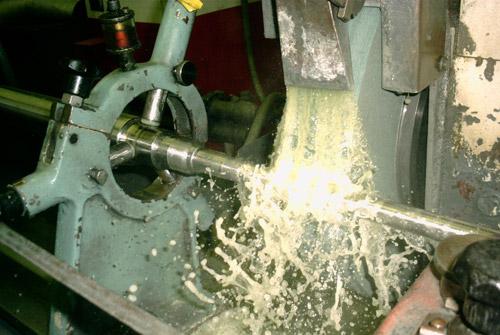

Finish grind of .875" fit on CNC manufactured shaft.
Shaft
2 ½" × 24"

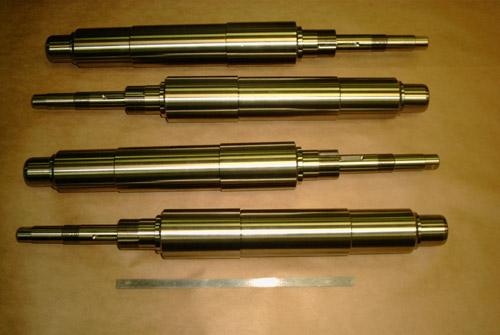

CNC manufactured shafts.
Related
Services
Hard Chrome Plating
Hard chrome plating from .0001" for corrosion protection to .050" for rebuild, to AMS 2460 and AMS 2406.
Components We Repair
Coater Rolls
Coater and printing rolls plated, ground and balanced — up to 6" × 29" plated, 6" × 120" sprayed.
Components We Repair
Hydraulic Ram Shafts
Worn hydraulic ram shafts rebuilt with hard chrome and ground back to print.
Send us the part
A drawing, a photograph, or just a description of how it failed. We will tell you what we would do with it.
